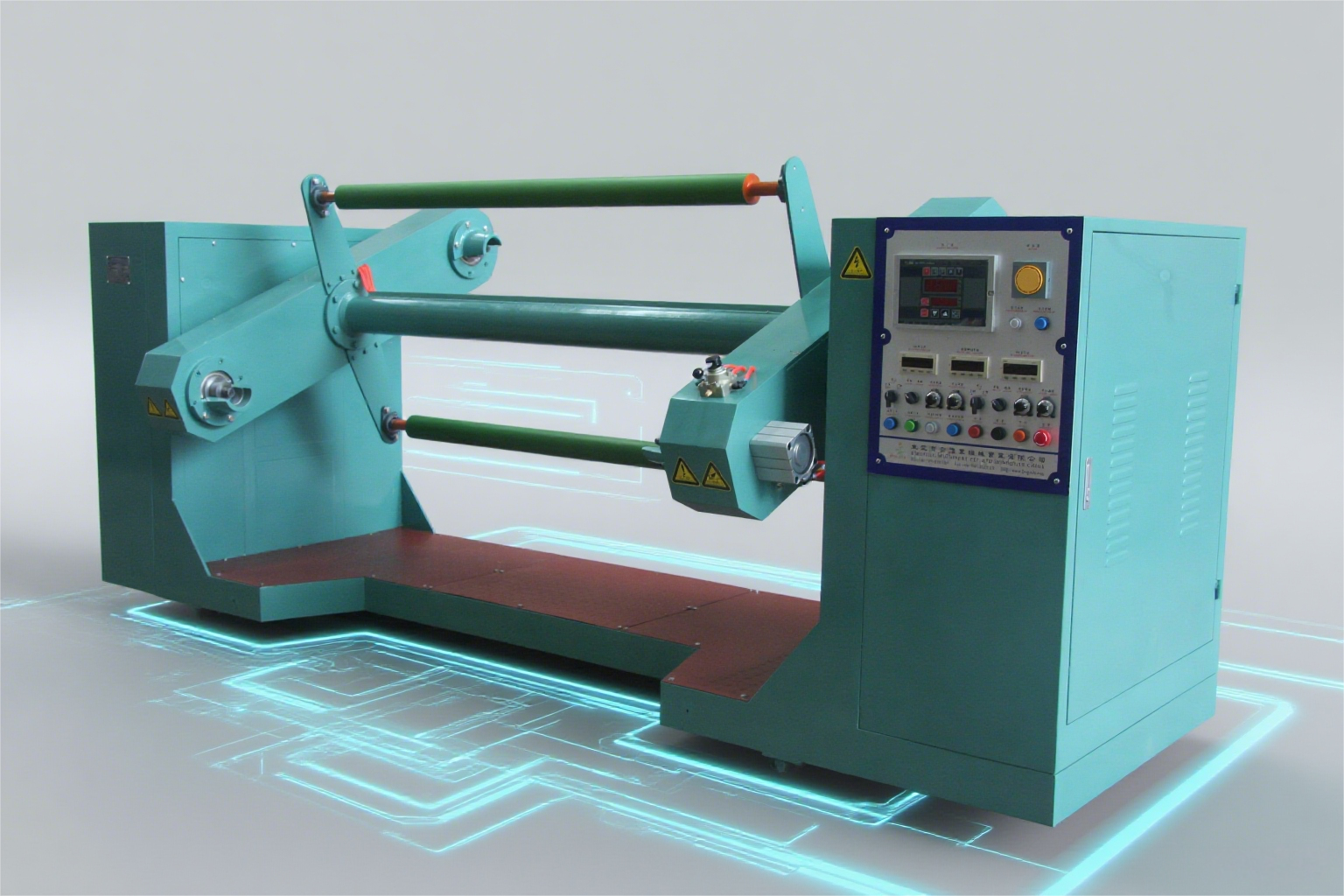

Rewinding Machine
  • Rewinding Machine
Rewinding Machine

Rewinding Machine

I. Product Overview

A rewinding machine is a device that rewinds coiled materials into rolls of specified specifications. It is suitable for films, paper, fabrics, metal foils, etc., and widely used in printing, packaging, textile and other fields to realize material slitting, winding and roll diameter calibration.

II. Key Features

  • Precise winding: Winding accuracy ±1mm, automatic tension control (0.5-50N), ensuring flat and wrinkle-free rolls.
  • Efficient operation: Winding speed 10-300m/min, supporting single/double station switching, roll changing time ≤30 seconds.
  • Flexible adaptation: Applicable to coil width 50-2000mm, maximum roll diameter 300-1500mm, compatible with various materials.

III. Common Specifications

  • Equipment parameters: Power 1.5-15kW, power supply 380V, equipped with PLC control system and tension sensor.
  • Configuration options: Optional slitting function (slitting accuracy ±0.5mm), automatic deviation correction, length counting device.

IV. Typical Applications

Plastic film slitting and rewinding, paper roll diameter adjustment, fabric winding and finishing, metal foil slitting and rewinding.
