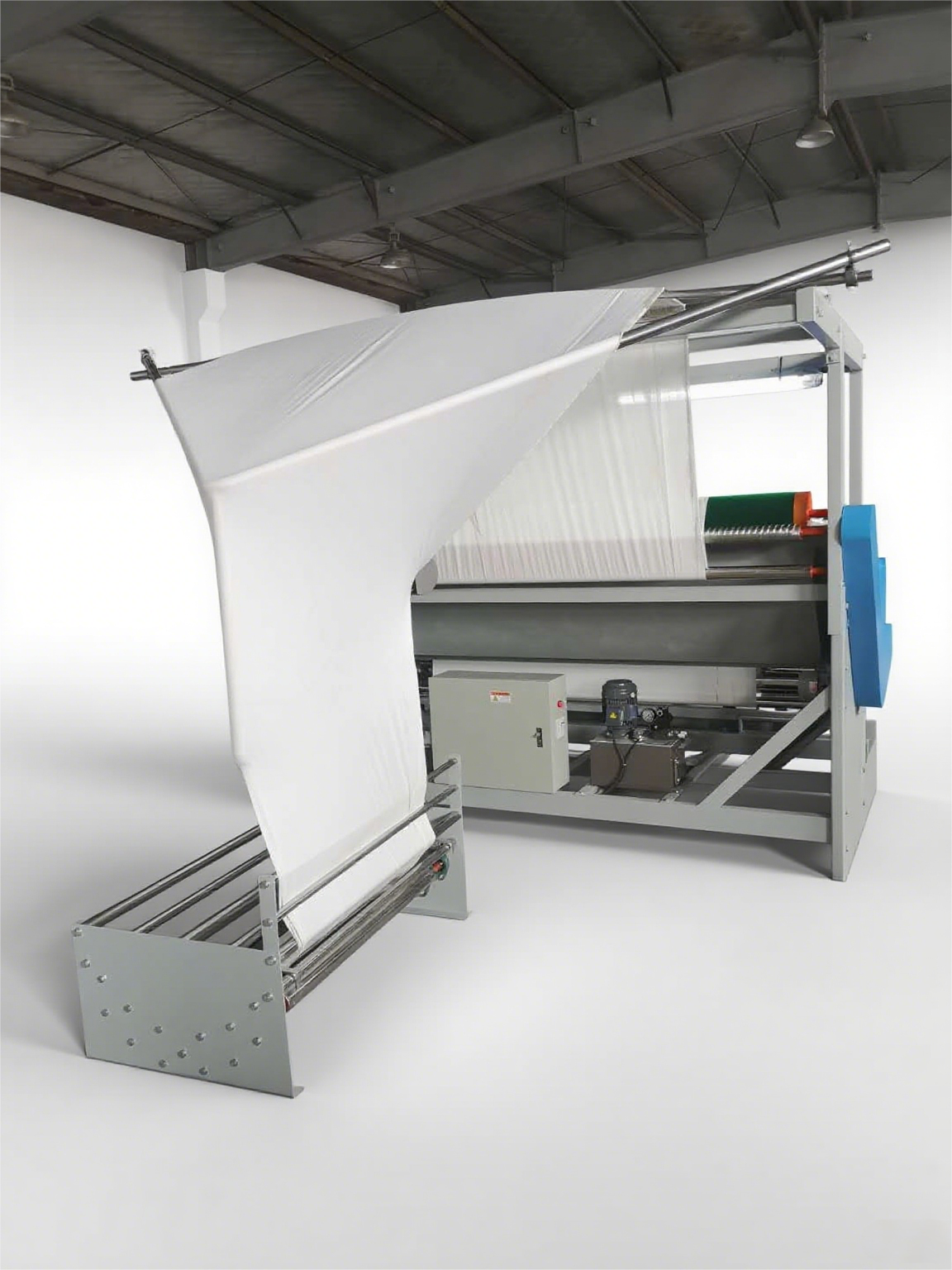

The tubular fabric tubular fabric opening inspection machine is a device used for opening and quality inspection of knitted and woven tubular fabrics (such as tubular cotton cloth, chemical fiber cloth). It can automatically unfold tubular fabrics into flat fabrics, and at the same time inspect fabric defects (such as holes, stains, yarn defects) through a light detection platform, improving the efficiency and accuracy of fabric inspection. It is widely used in the textile printing and dyeing industry.
-
Automatic opening: Equipped with a spreading roller and a widening device, it can quickly flatten tubular fabrics with a diameter of 300-800mm, with an opening accuracy of ±2mm.
-
High-definition inspection: Adopts an LED shadowless lamp platform, combined with a 10-20x adjustable magnifying glass, supports a fabric inspection speed of 40-80m/min, and the defect recognition rate is ≥98%.
-
Intelligent recording: With length measurement and defect marking functions, it can automatically count fabric length, mark defect positions, and data can be stored and exported.
-
Equipment parameters: Power 1.5-3kW, power supply 220V/380V, suitable for fabric width 800-2000mm, fabric weight 50-300g/㎡.
-
Structural parameters: The machine length is 3-5m, adopts a stainless steel frame, is equipped with a frequency conversion speed regulation system, and covers an area of about 4-6㎡.
Opening and inspection of knitted tubular fabrics, quality inspection of chemical fiber tubular fabrics, defect inspection of underwear fabrics, unfolding inspection of industrial tubular fabrics.
