Candle-Type Filter Demister
  • Candle-Type Filter Demister
Candle-Type Filter Demister

Candle-Type Filter Demister

I. Product Overview

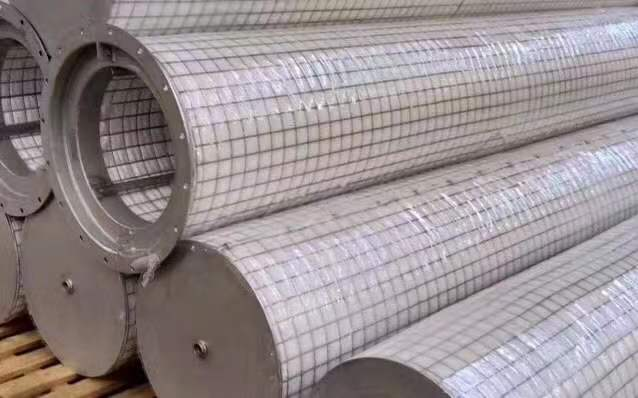

The candle-type filter demister is an integrated device with both filtering and demisting functions. It intercepts particulate impurities and mist droplets in liquids or gases through cylindrical filter elements (the "candle-type" structure), and is suitable for medium purification in chemical, pharmaceutical, food and other fields.

II. Key Features

  • Efficient separation: Filter element precision of 5-100μm, demisting efficiency ≥99%, ensuring thorough impurity interception.
  • Anti-clogging: Candle-type structural design with large flow area, allowing online backwashing for easy maintenance.
  • Working condition resistance: Available materials include stainless steel, PP, etc., with temperature resistance from -20℃ to 150℃, suitable for various media.

III. Common Specifications

  • Processing capacity: 0.5-100m³/h (selected by model).
  • Number of filter elements: 1-50 pieces, with diameter 50-200mm.
  • Working pressure: 0.1-1.6MPa, inlet/outlet diameter DN25-DN300.

IV. Typical Applications

Demisting of chemical tail gas, liquid filtration in pharmaceutical processes, medium purification in food processing.
